26"x18" Premium Quality 18 Speed Bicycle

26" Premium Quality 18 Speed Bicycle

Item code: 804718

Frame: 26"x18" Steel Rigid Frame, TIG Welded, Disc brake mount rear end, H/T: 30x34mmx150mmL, Seat Clamp w/o welded, w/o Pivot

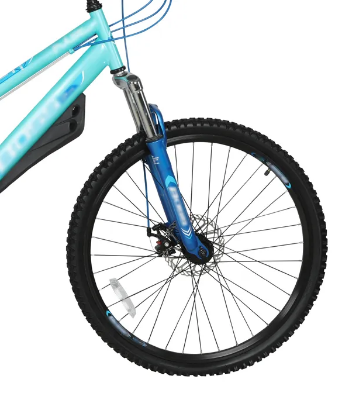

Fork: "26"" Steel MTB Type Suspension Fork,

22.2x25.4x183mm With Disc End, Steel stanchion & Crown CP"

Head Badge: Printed with Decals

Headset: Steel Full Ball Bearing, Set of 8Pcs, Size: 1"x24T, 22.2x30x27,

B. B. Set: BSA 1.37"x24T BB cups, Ball retainer 1/4"x9x2pcs, Set of 5 Pcs

B. B. Axle: Steel Cotterless, Bolt type

Decals: Over Clear (SKC) as per Artwork

Seat Clamp: 28.6mm Alloy Seat Clamp

Handle Bar: Steel. Diameter: 22.2x1.6T, Barbore-25.4mm. Width: 640mm. Rise: 30mm. Back Sweep 15°.

Stem : Steel MTB Type, Quill OD-22.2mm x150mmL, Ext: 100mm, Rise: 25deg, Barbore: 25.4mm, with Allen type expander bolt and plastic cap

Grips: TPR MTB Type 90mm/90mm (One side Opened)

Brake Levers: Resin Bracket, Alloy Lever-3 Finger Type,

Front Brake: Mechanical Disc brake with 160mm Rotor

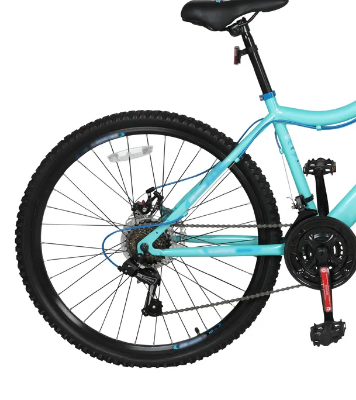

Rear Brake: Mechanical Disc brake with 160mm Rotor

Brake Inner Cable(F): Nipple 7x7x1.5x1100mm Galvanized steel

Brake Inner Cable(R): Nipple 7x7x1.5x1900mm Galvanized steel

Brake Outer Casing: Standard 5mm

Shifter Right: Revoshift (6 Speed Index)

Shifter Left: Revoshift (3 Speed Friction)

Front Derailleur: TOP pull, dia 28.6mm

Rear Derailleur: REAR DERAILLEUR, TOURNEY, RD-TY21-B, GS 6-SPEED, DIRECT ATTACHMENT TYPE, BLACK, BULK

Chain: Steel 3/32''x1/2''x110 Links for 6/Speed

Freewheel: 6 Speed Index 14-28T

Chainwheel: "Steel 3/32""x24x34x42Tx170 MM, CHAINRING- BK,

CRANK-Steel BK, GUARD -PVC Black"

Pedals 9/16" Boron Axle, One-Piece PP Body With ball and BS Reflectors , warning decals (R+L)

Derailleur Outer Casing 5mm 2P

Brake Outer Casing endcap Steel 5mm

Derailleur Outer endcap Plastic 4mm

Inner safety endcap Alloy

ReflectorBracket(F) Handle bar Braket, 22.2mm

Reflector Bracket(R): Seat Post braket, 25.4mm

Reflectors(Front):Front Reflector, Clear, Snap on

Reflectors(Rear):Rear Reflector, Red, Snap on

Reflectors(Wheel):Wheel Reflector, Clear,W/14GA. Rivet

Tyres Front 26" X 2.0 MTB Pattern

Tyres Rear 26" X 2.0 MTB Pattern

Tubes/Valve 26" American 40L Valve + Butyle Tube

Rim Tape 26'' Rubber

Rims 26" Alloy 36 Hole Double wall

Front Hub: Steel-14Gx36Hx3/8"x100mmx140mm,with washer & FN ,With Disc Brake Mount

Rear Hub: Steel-14Gx36Hx3/8"x130mmx170m, with FN, Disc Brake Mount

Spokes(F): Steel 14Gx256mmL

Spokes(R): Steel 14Gx256/254mmL

Spoke Disc Plastic 5.5''

Nipples Standard

Saddle MTB Type BK Rails+Clamps with Black Bumpers

Seat Post Steel straight 25.4X1.4Tx300mm

Water Bottle Bolt Allen type bolt M5X12mm

Bell Steel Top with Resin bracket

Mudguards Plastic mudguard undernath Down tude

Mudg. Bolt Allen Type Bolt M5X12mm with 02pcs washer

Manual Printed Manual as per AW

Tools: 5/6mm Steel Allen Key

Tools: Steel Multispanner

Carton: Standard 5 Ply, 85% Assembly (Carton Size:mm)

Fork Protector: Plastic # 6 (1pc Each Cycle)

Axle Protector: Plastic # 11 ( Each Bike 2 Pcs)

Axle D/T Protector: Plastic # 14 ( Each Bike 1 Pc)

Wrapping Paper: 2 Ply corrogated

Masking Tape: Use Masking Tape for wrapping

Long Cable ties: Plastic Cable Tie 420mmL

Staples: Steel

Strapping: 12mm x 1mm

Color: Mixed (As given picture).
